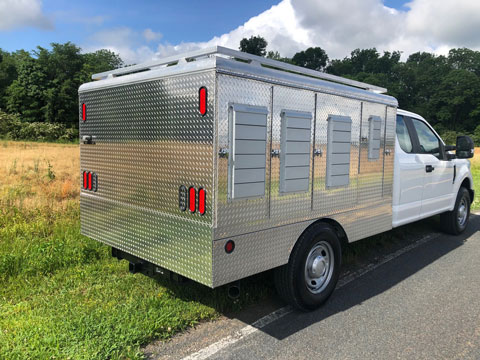

Model # CM1908

Chassis Mount unit for full size, long bed trucks with 56” Cab to Axle Measurement

CM1908

Standard Features:

  • Superior Appearance: This goes a long way in promoting the image of the officer in the field
  • All Aluminum: The DIAMOND DELUXE unit is constructed entirely of aluminum. This gives it years of durability while never cracking or needing to be repainted like other units. The exterior and floors are TREAD BRITE aluminum. The interior walls are smooth aluminum. The frame and structure is also entirely aluminum.
  • Lightweight: Aluminum is lighter than steel or fiberglass. This lighter weight equates to less wear and tear on the vehicle as well as improved fuel economy.
  • Insulated: All exterior walls are insulated with a 1” lined insulation.
  • Ventilated: Standard units have operable louver vents on doors for ventilation. Doors include locking latches keyed alike.
  • Swing Center Divider: Standard on all units is one swinging compartment divider/door. This can be opened up so the two compartments become one large compartment. This can then be used for transporting large animals, traps, etc. This door is located in the rear compartments (closest to the rear bumper.)
  • Storage Compartment: All units come standard with a locking storage compartment large enough for catch poles, tranquilizer poles, etc.
  • Wash-Thru: Standard on all units is a 1” opening at the bottom of compartment dividers for wash-thru ability when cleaning after use.
  • Hinges: Full length piano hinges on all compartment doors.
  • Lights: LED Body lights and reflectors per Federal regulations.
  • Warranty: Two year warranty on all DIAMOND DELUXE units.

Compartment Sizes:

1 @ 9” wide X 40” tall X 78” wide Locking storage compartment on the rear of the unit.
2 @ 21” wide X 27” tall x 39” deep Compartments for cats or small dogs. Solid partition with 1" opening at bottom for wash-thru.
4 @ 21”wide X 40” tall x 39” deep Compartments for medium size animals. Solid partition with 1” opening at bottom for wash-thru.
2 @ 29" wide X 40" tall X 39" deep Compartments for large animals. The center divider is hinged so it can be opened to form one large compartment for hauling large traps.

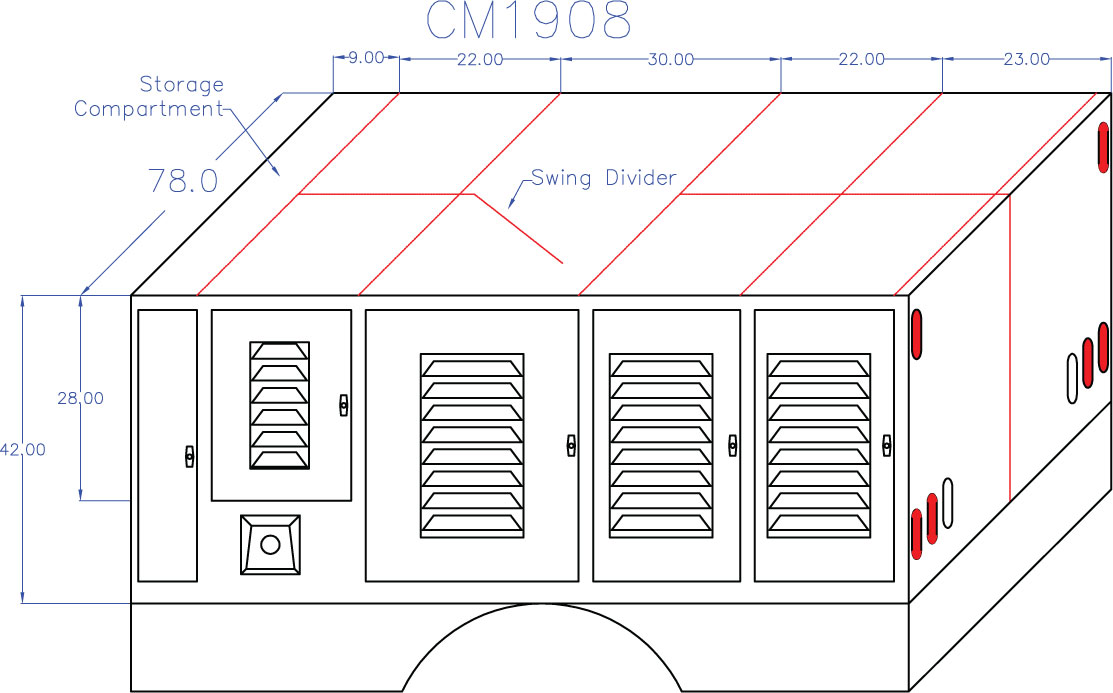

Drawings:


These are the standard compartment sizes. If needed, we can usually modify the dimensions to fit your specific needs with minimal, if any, additional costs.
